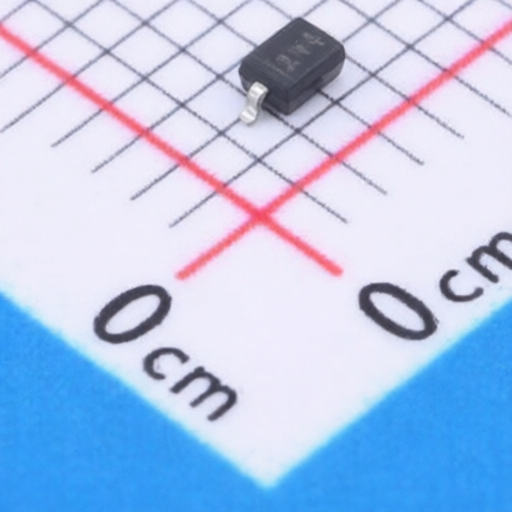

Medium Current Zener Diode JSCJ BZT52B3V6S Plastic Encapsulated SOD 323 Package Lead Free

Operating Junction Temperature Range : -55℃~+150℃

Impedance(Zzt) : 90Ω

Diode Configuration : Independent

Pd - Power Dissipation : 200mW

Zener Voltage(Range) : 3.53V~3.67V

Zener Voltage(Nom) : 3.6V

Impedance(Zzk) : 600Ω

Description : Zener Diode Independent 3.6V 200mW Surface Mount SOD-323

Mfr. Part # : BZT52B3V6S

Model Number : BZT52B3V6S

Package : SOD-323

Contact Now

Product Overview

The BZT52B2V4S-BZT52B39S series are general-purpose, medium-current Zener diodes featuring a planar die construction. They are ideally suited for automated assembly processes and are available in a lead-free version. These diodes offer a wide range of Zener voltages from 2.4V to 39V.

Product Attributes

Brand: JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD
Package Type: SOD-323
Material: Plastic-Encapsulate Diodes
Lead Free: Available

Technical Specifications

Type Number	Type Code	Nominal Zener Voltage (V)	Minimum Zener Voltage (V)	Maximum Zener Voltage (V)	Test Current (mA)	Maximum Zener Impedance ()	Maximum Reverse Current (A)	Typical Temperature Coefficient (mV/C)	Power Dissipation (mW)	Forward Voltage (V) @ 10mA	Thermal Resistance (C/W)	Junction & Storage Temp (C)
BZT52B2V4S	2WX	2.4	2.35	2.45	5	600	50	-3.5	200	0.9	625	-55 ~ +150
BZT52B2V7S	2W1	2.7	2.65	2.75	5	600	20	-3.5	200	0.9	625	-55 ~ +150
BZT52B3V0S	2W2	3.0	2.94	3.06	5	600	10	-3.5	200	0.9	625	-55 ~ +150
BZT52B3V3S	2W3	3.3	3.23	3.37	5	600	5	-3.5	200	0.9	625	-55 ~ +150
BZT52B3V6S	2W4	3.6	3.53	3.67	5	600	5	-3.5	200	0.9	625	-55 ~ +150
BZT52B3V9S	2W5	3.9	3.82	3.98	5	600	3	-3.5	200	0.9	625	-55 ~ +150
BZT52B4V3S	2W6	4.3	4.21	4.39	5	600	3	-3.5	200	0.9	625	-55 ~ +150
BZT52B4V7S	2W7	4.7	4.61	4.79	5	500	3	-3.5	200	0.9	625	-55 ~ +150
BZT52B5V1S	2W8	5.1	5.00	5.20	5	480	2	-2.7	200	0.9	625	-55 ~ +150
BZT52B5V6S	2W9	5.6	5.49	5.71	5	400	1	-2.0	200	0.9	625	-55 ~ +150
BZT52B6V2S	2WA	6.2	6.08	6.32	5	150	3	0.4	200	0.9	625	-55 ~ +150
BZT52B6V8S	2WB	6.8	6.66	6.94	5	80	2	1.2	200	0.9	625	-55 ~ +150
BZT52B7V5S	2WC	7.5	7.35	7.65	5	80	1	2.5	200	0.9	625	-55 ~ +150
BZT52B8V2S	2WD	8.2	8.04	8.36	5	80	0.7	3.2	200	0.9	625	-55 ~ +150
BZT52B9V1S	2WE	9.1	8.92	9.28	5	100	0.5	3.8	200	0.9	625	-55 ~ +150
BZT52B10S	2WF	10	9.80	10.20	5	150	0.2	4.5	200	0.9	625	-55 ~ +150
BZT52B11S	2WG	11	10.78	11.22	5	150	0.1	5.4	200	0.9	625	-55 ~ +150
BZT52B12S	2WH	12	11.76	12.24	5	150	0.1	6.0	200	0.9	625	-55 ~ +150
BZT52B13S	2WI	13	12.74	13.26	5	170	0.1	7.0	200	0.9	625	-55 ~ +150
BZT52B15S	2WJ	15	14.70	15.30	5	200	0.1	9.2	200	0.9	625	-55 ~ +150
BZT52B16S	2WK	16	15.68	16.32	5	200	0.1	10.4	200	0.9	625	-55 ~ +150
BZT52B18S	2WL	18	17.64	18.36	5	225	0.1	12.4	200	0.9	625	-55 ~ +150
BZT52B20S	2WM	20	19.60	20.40	5	225	0.1	14.4	200	0.9	625	-55 ~ +150
BZT52B22S	2WN	22	21.56	22.44	5	250	0.1	16.4	200	0.9	625	-55 ~ +150
BZT52B24S	2WO	24	23.52	24.48	5	250	0.1	18.4	200	0.9	625	-55 ~ +150
BZT52B27S	2WP	27	26.46	27.54	2	300	0.1	21.4	200	0.9	625	-55 ~ +150
BZT52B30S	2WQ	30	29.40	30.60	2	300	0.1	24.4	200	0.9	625	-55 ~ +150
BZT52B33S	2WR	33	32.34	33.66	2	325	0.1	27.4	200	0.9	625	-55 ~ +150
BZT52B36S	2WS	36	35.28	36.72	2	350	0.1	30.4	200	0.9	625	-55 ~ +150
BZT52B39S	2WT	39	38.22	39.78	2	350	0.1	33.4	200	0.9	625	-55 ~ +150
